Forecasting energy demand with machine learning
More about forecasting
- ARIMA and SARIMAX models with python
- Time series forecasting with machine learning
- Forecasting time series with gradient boosting: XGBoost, LightGBM and CatBoost
- Forecasting time series with XGBoost
- Global Forecasting Models: Multi-series forecasting
- Global Forecasting Models: Comparative Analysis of Single and Multi-Series Forecasting Modeling
- Probabilistic forecasting
- Forecasting with deep learning
- Forecasting energy demand with machine learning
- Forecasting web traffic with machine learning
- Intermittent demand forecasting
- Modelling time series trend with tree-based models
- Bitcoin price prediction with Python
- Stacking ensemble of machine learning models to improve forecasting
- Interpretable forecasting models
- Mitigating the Impact of Covid on forecasting Models
- Forecasting time series with missing values
Introduction¶
Energy demand forecasting plays a critical role in effectively managing and planning resources for power generation, distribution, and utilization. Predicting energy demand is a complex task influenced by factors such as weather patterns, economic conditions, and societal behavior. This document will examine the creation of forecasting models utilizing machine learning to predict energy demand.
Time series and forecasting
A time series is a sequence of chronologically ordered data at equal or unequal intervals. The forecasting process consists of predicting the future value of a time series, either by modelling the series solely on the basis of its past behavior (autoregressive) or by using other external variables.
When working with time series, it is rarely necessary to predict only the next element in the series ($t_{+1}$). Instead, the most common goal is to forecast a whole future interval (($t_{+1}$), ..., ($t_{+n}$)) or a far future time ($t_{+n}$). Several strategies can be used to generate this type of forecast, skforecast has implemented the following for univariate time series forecasting:
- Recursive multi-step forecasting: since the value $t_{n-1}$ is needed to predict $t_{n}$, and $t_{n-1}$ is unknown, a recursive process is applied in which, each new prediction, is based on the previous one. This process is known as recursive forecasting or recursive multi-step forecasting and can be easily generated with the
ForecasterRecursiveclass.
- Direct multi-step forecasting: this method consists of training a different model for each step of the forecast horizon. For example, to predict the next 5 values of a time series, 5 different models are trained, one for each step. As a result, the predictions are independent of each other. This entire process is automated in the
ForecasterDirectclass.
- Forecasting multi-output: Some machine learning models, such as long short-term memory (LSTM) neural networks, can predict multiple values of a sequence simultaneously (one-shot). This strategy implemented in the
ForecasterRnnclass
✎ Note
Two other great examples of how to use gradient boosting for time series forecasting are:Libraries¶
The libraries used in this document are:
# Data manipulation
# ==============================================================================
import numpy as np
import pandas as pd
from astral.sun import sun
from astral import LocationInfo
from skforecast.datasets import fetch_dataset
from feature_engine.datetime import DatetimeFeatures
from feature_engine.creation import CyclicalFeatures
from feature_engine.timeseries.forecasting import WindowFeatures
# Plots
# ==============================================================================
import matplotlib.pyplot as plt
from statsmodels.graphics.tsaplots import plot_acf
from statsmodels.graphics.tsaplots import plot_pacf
from skforecast.plot import plot_residuals
import plotly.graph_objects as go
import plotly.io as pio
import plotly.offline as poff
pio.templates.default = "seaborn"
poff.init_notebook_mode(connected=True)
plt.style.use('seaborn-v0_8-darkgrid')
plt.rcParams.update({'font.size':8})
# Modelling and Forecasting
# ==============================================================================
import skforecast
import lightgbm
import sklearn
from lightgbm import LGBMRegressor
from sklearn.preprocessing import PolynomialFeatures
from sklearn.feature_selection import RFECV
from skforecast.recursive import ForecasterEquivalentDate
from skforecast.recursive import ForecasterRecursive
from skforecast.direct import ForecasterDirect
from skforecast.model_selection import bayesian_search_forecaster
from skforecast.model_selection import backtesting_forecaster
from skforecast.feature_selection import select_features
from skforecast.model_selection import TimeSeriesFold
from skforecast.preprocessing import RollingFeatures
import shap
# Warnings configuration
# ==============================================================================
import warnings
warnings.filterwarnings('once')
color = '\033[1m\033[38;5;208m'
print(f"{color}Version skforecast: {skforecast.__version__}")
print(f"{color}Version scikit-learn: {sklearn.__version__}")
print(f"{color}Version lightgbm: {lightgbm.__version__}")
print(f"{color}Version pandas: {pd.__version__}")
print(f"{color}Version numpy: {np.__version__}")
Data¶
A time series of electricity demand (MW) is available for the state of Victoria (Australia) from 2011-12-31 to 2014-12-31 is available. The data used in this document has been obtained from the R tsibbledata package. The dataset contains 5 columns and 52,608 complete records. The information in each column is:
- Time: date and time of the record.
- Date: date of the record.
- Demand: electricity demand (MW).
- Temperature: temperature in Melbourne, the capital of Victoria.
- Holiday: indicates if the day is a public holiday.
# Data download
# ==============================================================================
data = fetch_dataset(name='vic_electricity', raw=True)
data.info()
The Time column is stored as a string. To convert it to datetime, the function pd.to_datetime() is used. Once in datetime format, and to make use of pandas functionalities, it is set as an index. Since the data was recorded every 30 minutes, the frequency '30min' is also specified.
# Data preparation
# ==============================================================================
data = data.copy()
data['Time'] = pd.to_datetime(data['Time'], format='%Y-%m-%dT%H:%M:%SZ')
data = data.set_index('Time')
data = data.asfreq('30min')
data = data.sort_index()
data.head(2)
One of the first analyses to be carried out when working with time series is to check that the series is complete, that is, that there are no missing values.
# Verify that a temporary index is complete
# ==============================================================================
start_date = data.index.min()
end_date = data.index.max()
complete_date_range = pd.date_range(start=start_date, end=end_date, freq=data.index.freq)
is_index_complete = (data.index == complete_date_range).all()
print(f"Index complete: {is_index_complete}")
print(f"Number of rows with missing values: {data.isnull().any(axis=1).mean()}")
# Fill gaps in a temporary index
# ==============================================================================
# data.asfreq(freq='30min', fill_value=np.nan)
Although the data is at 30 minute intervals, the aim is to create a model capable of predicting hourly electricity demand, so the data needs to be aggregated. This type of transformation can be done very easily by combining the Pandas DatetimeIndex index and its resample() method.

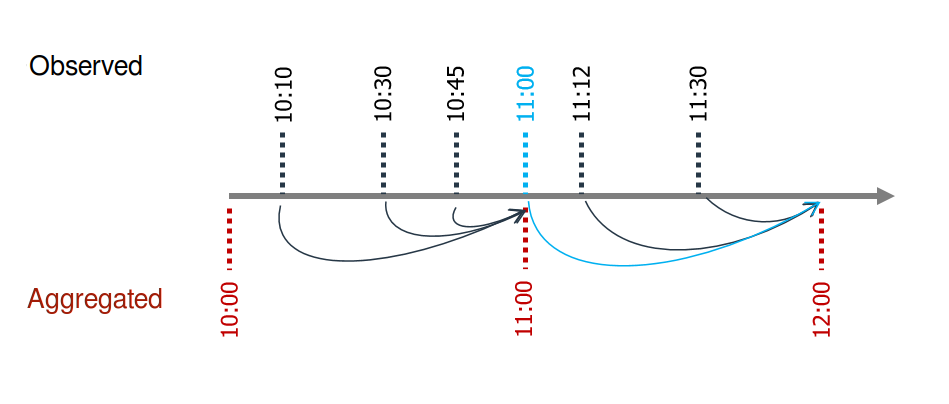

It is very important to use the closed='left' and label='right' arguments correctly to avoid introducing future information into the training, leakage). Suppose that values are available for 10:10, 10:30, 10:45, 11:00, 11:12, and 11:30. To obtain the hourly average, the value assigned to 11:00 must be calculated using the values for 10:10, 10:30, and 10:45; and the value assigned to 12:00 must be calculated using the value for 11:00, 11:12 and 11:30.
The 11:00 average does not include the 11:00 point value because in reality the value is not available at that exact time.
# Aggregating in 1H intervals
# ==============================================================================
# The Date column is eliminated so that it does not generate an error when aggregating.
data = data.drop(columns="Date")
data = (
data
.resample(rule="h", closed="left", label="right")
.agg({
"Demand": "mean",
"Temperature": "mean",
"Holiday": "mean",
})
)
data
The dataset starts on 2011-12-31 14:00:00 and ends on 2014-12-31 13:00:00. The first 10 and the last 13 records are discarded so that it starts on 2012-01-01 00:00:00 and ends on 2014-12-30 23:00:00. In addition, in order to optimize the hyperparameters of the model and evaluate its predictive ability, the data is divided into 3 sets: training, validation and test.
# Split data into train-val-test
# ==============================================================================
data = data.loc['2012-01-01 00:00:00':'2014-12-30 23:00:00', :].copy()
end_train = '2013-12-31 23:59:00'
end_validation = '2014-11-30 23:59:00'
data_train = data.loc[: end_train, :].copy()
data_val = data.loc[end_train:end_validation, :].copy()
data_test = data.loc[end_validation:, :].copy()
print(f"Train dates : {data_train.index.min()} --- {data_train.index.max()} (n={len(data_train)})")
print(f"Validation dates : {data_val.index.min()} --- {data_val.index.max()} (n={len(data_val)})")
print(f"Test dates : {data_test.index.min()} --- {data_test.index.max()} (n={len(data_test)})")
Graphic exploration¶
Graphical exploration of time series can be an effective way of identifying trends, patterns, and seasonal variations. This, in turn, helps to guide the selection of the most appropriate forecasting model.
Plot time series¶
Full time series
# Interactive plot of time series
# ==============================================================================
fig = go.Figure()
fig.add_trace(go.Scatter(x=data_train.index, y=data_train['Demand'], mode='lines', name='Train'))
fig.add_trace(go.Scatter(x=data_val.index, y=data_val['Demand'], mode='lines', name='Validation'))
fig.add_trace(go.Scatter(x=data_test.index, y=data_test['Demand'], mode='lines', name='Test'))
fig.update_layout(
title = 'Hourly energy demand',
xaxis_title="Time",
yaxis_title="Demand",
legend_title="Partition:",
width=750,
height=370,
margin=dict(l=20, r=20, t=35, b=20),
legend=dict(orientation="h", yanchor="top", y=1, xanchor="left", x=0.001)
)
#fig.update_xaxes(rangeslider_visible=True)
fig.show()
The graph above shows that electricity demand has an annual seasonality. There is a peak in July and very pronounced peaks in demand between January and March.
Section of the time series
Due to the variance of the time series, it is not possible to see the possible intraday pattern from a single chart.
# Zooming time series chart
# ==============================================================================
zoom = ('2013-05-01 14:00:00', '2013-06-01 14:00:00')
fig = plt.figure(figsize=(8, 4))
grid = plt.GridSpec(nrows=8, ncols=1, hspace=0.6, wspace=0)
main_ax = fig.add_subplot(grid[:3, :])
data.Demand.plot(ax=main_ax, c='black', alpha=0.5, linewidth=0.5)
min_y = min(data.Demand)
max_y = max(data.Demand)
main_ax.fill_between(zoom, min_y, max_y, facecolor='blue', alpha=0.5, zorder=0)
main_ax.set_title(f'Electricity demand: {data.index.min()}, {data.index.max()}', fontsize=10)
main_ax.set_xlabel('')
zoom_ax = fig.add_subplot(grid[5:, :])
data.loc[zoom[0]: zoom[1]].Demand.plot(ax=zoom_ax, color='blue', linewidth=1)
zoom_ax.set_title(f'Electricity demand: {zoom}', fontsize=10)
zoom_ax.set_xlabel('')
plt.subplots_adjust(hspace=1)
plt.show();
When the time series are zoomed in, a clear weekly seasonality can be seen, with higher consumption during the working week (Monday to Friday) and lower consumption at weekends. There is also a clear correlation between the consumption of one day and that of the previous day.
Seasonality plots¶
Seasonal plots are a useful tool for identifying seasonal patterns and trends in a time series. They are created by averaging the values of each season over time and then plotting them against time.
# Annual, weekly and daily seasonality
# ==============================================================================
fig, axs = plt.subplots(2, 2, figsize=(8, 5), sharex=False, sharey=True)
axs = axs.ravel()
# Demand distribution by month
data['month'] = data.index.month
data.boxplot(column='Demand', by='month', ax=axs[0], flierprops={'markersize': 3, 'alpha': 0.3})
data.groupby('month')['Demand'].median().plot(style='o-', linewidth=0.8, ax=axs[0])
axs[0].set_ylabel('Demand')
axs[0].set_title('Demand distribution by month', fontsize=9)
# Demand distribution by week day
data['week_day'] = data.index.day_of_week + 1
data.boxplot(column='Demand', by='week_day', ax=axs[1], flierprops={'markersize': 3, 'alpha': 0.3})
data.groupby('week_day')['Demand'].median().plot(style='o-', linewidth=0.8, ax=axs[1])
axs[1].set_ylabel('Demand')
axs[1].set_title('Demand distribution by week day', fontsize=9)
# Demand distribution by the hour of the day
data['hour_day'] = data.index.hour + 1
data.boxplot(column='Demand', by='hour_day', ax=axs[2], flierprops={'markersize': 3, 'alpha': 0.3})
data.groupby('hour_day')['Demand'].median().plot(style='o-', linewidth=0.8, ax=axs[2])
axs[2].set_ylabel('Demand')
axs[2].set_title('Demand distribution by the hour of the day', fontsize=9)
# Demand distribution by week day and hour of the day
mean_day_hour = data.groupby(["week_day", "hour_day"])["Demand"].mean()
mean_day_hour.plot(ax=axs[3])
axs[3].set(
title = "Mean Demand during week",
xticks = [i * 24 for i in range(7)],
xticklabels = ["Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"],
xlabel = "Day and hour",
ylabel = "Number of Demand"
)
axs[3].title.set_size(10)
fig.suptitle("Seasonality plots", fontsize=12)
fig.tight_layout()
There is an annual seasonality, with higher (median) demand values in the months of June, July and August, and high peak demand values in the months of November, December, January, February and March. There is a weekly seasonality, with lower demand during the weekend. There is also a daily seasonality, with demand decreasing between 16:00 and 21:00.
Autocorrelation plots¶
Auto-correlation plots are a useful tool for identifying the order of an autoregressive model. The autocorrelation function (ACF) is a measure of the correlation between the time series and a lagged version of itself. The partial autocorrelation function (PACF) is a measure of the correlation between the time series and a lagged version of itself, controlling for the values of the time series at all shorter lags. These plots are useful for identifying the lags to be included in the autoregressive model.
# Autocorrelation plot
# ==============================================================================
fig, ax = plt.subplots(figsize=(5, 2))
plot_acf(data.Demand, ax=ax, lags=60)
plt.show()
# Partial autocorrelation plot
# ==============================================================================
fig, ax = plt.subplots(figsize=(5, 2))
plot_pacf(data.Demand, ax=ax, lags=60)
plt.show()
The autocorrelation plot demonstrates a strong correlation between demand in one hour and prior hours, as well as between demand in one hour and the corresponding hour in preceding days. This observed correlation suggests that autoregressive models may be effective in this scenario.
Baseline¶
When faced with a forecasting problem, it is important to establish a baseline model. This is usually a very simple model that can be used as a reference to assess whether more complex models are worth implementing.
Skforecast allows you to easily create a baseline with its class ForecasterEquivalentDate. This model, also known as Seasonal Naive Forecasting, simply returns the value observed in the same period of the previous season (e.g., the same working day from the previous week, the same hour from the previous day, etc.).
Based on the exploratory analysis performed, the baseline model will be the one that predicts each hour using the value of the same hour on the previous day.
✎ Note
In the following code cells, a baseline forecaster is trained and its predictive ability is evaluated using a backtesting process. If this concept is new to you, do not worry, it will be explained in detail throughout the document. For now, it is sufficient to know that the backtesting process consists of training the model with a certain amount of data and evaluating its predictive ability with the data that the model has not seen. The error metric will be used as a reference to evaluate the predictive ability of the more complex models that will be implemented later.# Create baseline: value of the same hour of the previous day
# ==============================================================================
forecaster = ForecasterEquivalentDate(
offset = pd.DateOffset(days=1),
n_offsets = 1
)
# Train forecaster
# ==============================================================================
forecaster.fit(y=data.loc[:end_validation, 'Demand'])
forecaster
# Backtesting
# ==============================================================================
cv = TimeSeriesFold(
steps = 24,
initial_train_size = len(data.loc[:end_validation]),
refit = False
)
metric, predictions = backtesting_forecaster(
forecaster = forecaster,
y = data['Demand'],
cv = cv,
metric = 'mean_absolute_error',
n_jobs = 'auto',
verbose = False,
show_progress = True
)
metric
The error of the baseline model is used as a reference to assess whether the more complex models are worth implementing.
Recursive multi-step forecasting¶
A recursive autoregressive model ForecasterRecursive is trained using a gradient boosting regressor LGBMRegressor, to predict energy demand for the next 24 hours.
The predictors used are the demand values from the past 24 hours (24 lags) as well as the moving average of the past 3 days. The regressor's hyperparameters are left at their default values.
# Create forecaster
# ==============================================================================
window_features = RollingFeatures(stats=["mean"], window_sizes=24 * 3)
forecaster = ForecasterRecursive(
regressor = LGBMRegressor(random_state=15926, verbose=-1),
lags = 24,
window_features = window_features
)
# Train forecaster
# ==============================================================================
forecaster.fit(y=data.loc[:end_validation, 'Demand'])
forecaster
Backtesting¶
To obtain a robust estimate of the model's predictive ability, a backtesting process is performed. The backtesting process consists of generating a forecast for each observation in the test set, following the same procedure as would be done in production, and then comparing the predicted value to the actual value.
The backtesting process is applied using the backtesting_forecaster() function. For this use case, the simulation is carried out as follows: the model is trained with data from 2012-01-01 00:00 to 2014-11-30 23:00, and then it predicts the next 24 hours every day at 23:59. The error metric used is the Mean Absolute Error (MAE).
# Backtesting
# ==============================================================================
metric, predictions = backtesting_forecaster(
forecaster = forecaster,
y = data['Demand'],
cv = cv,
metric = 'mean_absolute_error',
n_jobs = 'auto',
verbose = True, # Set to False to avoid printing
show_progress = True
)
# Plot predictions vs real value
# ======================================================================================
fig = go.Figure()
trace1 = go.Scatter(x=data_test.index, y=data_test['Demand'], name="test", mode="lines")
trace2 = go.Scatter(x=predictions.index, y=predictions['pred'], name="prediction", mode="lines")
fig.add_trace(trace1)
fig.add_trace(trace2)
fig.update_layout(
title="Real value vs predicted in test data",
xaxis_title="Date time",
yaxis_title="Demand",
width=750,
height=370,
margin=dict(l=20, r=20, t=35, b=20),
legend=dict(orientation="h", yanchor="top", y=1.01, xanchor="left", x=0)
)
fig.show()
# Backtesting error
# ==============================================================================
metric
The autoregressive model achieves a lower MAE than the baseline model. This means that the autoregressive model is able to predict the next day's electricity demand more accurately than the baseline model.
Hyperparameter tuning¶
The trained ForecasterRecursive object used the first 24 lags and a LGMBRegressor model with the default hyperparameters. However, there is no reason why these values are the most appropriate. To find the best hyperparameters, a Bayesian Search is performed using the bayesian_search_forecaster() function. The search is carried out using the same backtesting process as before, but each time, the model is trained with different combinations of hyperparameters and lags. It is important to note that the hiperparameter search must be done using the validation set, so the test data is never used.
✎ Note
Searching for hyperparameters can take a long time, especially when using a validation strategy based on backtesting (TimeSeriesFold). A faster alternative is to use a validation strategy based on one-step-ahead predictions (OneStepAheadFold). Although this strategy is faster, it may not be as accurate as validation based on backtesting. For a more detailed description of the pros and cons of each strategy, see the section [backtesting vs one-step-ahead](https://skforecast.org/latest/faq/parameters-search-backetesting-vs-one-step-ahead.html).
# Hyperparameters search
# ==============================================================================
forecaster = ForecasterRecursive(
regressor = LGBMRegressor(random_state=15926, verbose=-1),
lags = 24, # This value will be replaced in the grid search
window_features = window_features
)
# Lags used as predictors
lags_grid = [24, (1, 2, 3, 23, 24, 25, 47, 48, 49)]
# Regressor hyperparameters search space
def search_space(trial):
search_space = {
'n_estimators' : trial.suggest_int('n_estimators', 600, 2000, step=100),
'max_depth' : trial.suggest_int('max_depth', 3, 10, step=1),
'learning_rate' : trial.suggest_float('learning_rate', 0.01, 0.5),
'reg_alpha' : trial.suggest_float('reg_alpha', 0, 1, step=0.1),
'reg_lambda' : trial.suggest_float('reg_lambda', 0, 1, step=0.1),
'lags' : trial.suggest_categorical('lags', lags_grid)
}
return search_space
# Folds training and validation
cv_search = TimeSeriesFold(
steps = 24,
initial_train_size = len(data[:end_train]),
refit = False,
)
results_search, frozen_trial = bayesian_search_forecaster(
forecaster = forecaster,
y = data.loc[:end_validation, 'Demand'],
cv = cv_search,
metric = 'mean_absolute_error',
search_space = search_space,
n_trials = 10, # Increase for more exhaustive search
random_state = 123,
return_best = True,
n_jobs = 'auto',
verbose = False,
show_progress = True
)
# Search results
# ==============================================================================
best_params = results_search.at[0, 'params']
best_params = best_params | {'random_state': 15926, 'verbose': -1}
best_lags = results_search.at[0, 'lags']
results_search.head(3)
Since return_best has been set to True, the forecaster object is automatically updated with the best configuration found and trained on the entire dataset. This final model can then be used for future predictions on new data.
# Best model
# ==============================================================================
forecaster
Backtesting on test data¶
Once the best combination of hyperparameters has been identified using the validation data, the predictive capacity of the model is evaluated when applied to the test set. It is highly recommended to review the documentation for the backtesting_forecaster() function to gain a better understanding of its capabilities. This will help to utilize its full potential to analyze the predictive ability of the model.
# Backtest final model on test data
# ==============================================================================
metric, predictions = backtesting_forecaster(
forecaster = forecaster,
y = data['Demand'],
cv = cv,
metric = 'mean_absolute_error',
n_jobs = 'auto',
verbose = False, # Change to True to see detailed information
show_progress = True
)
display(metric)
predictions.head()
After optimization of lags and hyperparameters, the prediction error was notably reduced.
Exogenous variables¶
So far, only lagged values of the time series have been used as predictors. However, it is possible to include other variables as predictors. These variables are known as exogenous variables (features) and their use can improve the predictive capacity of the model. A very important point to keep in mind is that the values of the exogenous variables must be known at the time of prediction.
Common examples of exogenous variables are those derived from the calendar, such as the day of the week, month, year, or holidays. Weather variables such as temperature, humidity, and wind also fall into this category, as do economic variables such as inflation and interest rates.
⚠ Warning
Exogenous variables must be known at the time of the forecast. For example, if temperature is used as an exogenous variable, the temperature value for the next hour must be known at the time of the forecast. If the temperature value is not known, the forecast will not be possible.Weather variables should be used with caution. When the model is deployed into production, future weather conditions are not known, but are predictions made by meteorological services. Because they are predictions, they introduce errors into the forecasting model. As a result, the model's predictions are likely to get worse. One way to anticipate this problem, and to know (not avoid) the expected performance of the model, is to use the weather forecasts available at the time the model is trained, rather than the recorded conditions.
Next, exogenous variables are created based on calendar information, sunrise and sunset times, temperature, and holidays. These new variables are then added to the training, validation and test sets, and used as predictors in the autoregressive model.
# Calendar features
# ==============================================================================
features_to_extract = [
'month',
'week',
'day_of_week',
'hour'
]
calendar_transformer = DatetimeFeatures(
variables='index',
features_to_extract=features_to_extract,
drop_original=True,
)
calendar_features = calendar_transformer.fit_transform(data)[features_to_extract]
# Sunlight features
# ==============================================================================
location = LocationInfo(
latitude=-37.8,
longitude=144.95,
timezone='Australia/Melbourne'
)
sunrise_hour = [
sun(location.observer, date=date, tzinfo=location.timezone)['sunrise']
for date in data.index
]
sunset_hour = [
sun(location.observer, date=date, tzinfo=location.timezone)['sunset']
for date in data.index
]
sunrise_hour = pd.Series(sunrise_hour, index=data.index).dt.round("h").dt.hour
sunset_hour = pd.Series(sunset_hour, index=data.index).dt.round("h").dt.hour
sun_light_features = pd.DataFrame({
'sunrise_hour': sunrise_hour,
'sunset_hour': sunset_hour
})
sun_light_features['daylight_hours'] = (
sun_light_features['sunset_hour'] - sun_light_features['sunrise_hour']
)
sun_light_features["is_daylight"] = np.where(
(data.index.hour >= sun_light_features["sunrise_hour"])
& (data.index.hour < sun_light_features["sunset_hour"]),
1,
0,
)
# Holiday features
# ==============================================================================
holiday_features = data[['Holiday']].astype(int)
holiday_features['holiday_previous_day'] = holiday_features['Holiday'].shift(24)
holiday_features['holiday_next_day'] = holiday_features['Holiday'].shift(-24)
# Rolling windows of temperature
# ==============================================================================
wf_transformer = WindowFeatures(
variables = ["Temperature"],
window = ["1D", "7D"],
functions = ["mean", "max", "min"],
freq = "h",
)
temp_features = wf_transformer.fit_transform(data[['Temperature']])
# Merge all exogenous variables
# ==============================================================================
assert all(calendar_features.index == sun_light_features.index)
assert all(calendar_features.index == temp_features.index)
assert all(calendar_features.index == holiday_features.index)
exogenous_features = pd.concat([
calendar_features,
sun_light_features,
temp_features,
holiday_features
], axis=1)
# Due to the creation of moving averages, there are missing values at the beginning
# of the series. And due to holiday_next_day there are missing values at the end.
exogenous_features = exogenous_features.iloc[7 * 24:, :]
exogenous_features = exogenous_features.iloc[:-24, :]
exogenous_features.head(3)
Certain aspects of the calendar, such as hours or days, are cyclical. For example, the hour-day cycle ranges from 0 to 23 hours. Although interpreted as a continuous variable, the hour 23:00 is only one hour away from 00:00. The same is true for the month-year cycle, since December is only one month away from January. The use of trigonometric functions such as sine and cosine transformations makes it possible to represent cyclic patterns and avoid inconsistencies in data representation. This approach is known as cyclic encoding and can significantly improve the predictive ability of models.
# Cliclical encoding of calendar and sunlight features
# ==============================================================================
features_to_encode = [
"month",
"week",
"day_of_week",
"hour",
"sunrise_hour",
"sunset_hour",
]
max_values = {
"month": 12,
"week": 52,
"day_of_week": 6,
"hour": 23,
"sunrise_hour": 23,
"sunset_hour": 23,
}
cyclical_encoder = CyclicalFeatures(
variables = features_to_encode,
max_values = max_values,
drop_original = False
)
exogenous_features = cyclical_encoder.fit_transform(exogenous_features)
exogenous_features.head(3)
In many cases, exogenous variables are not isolated. Rather, their effect on the target variable depends on the value of other variables. For example, the effect of temperature on electricity demand depends on the time of day. The interaction between the exogenous variables can be captured by new variables that are obtained by multiplying existing variables together. This interactions are easily obtained with the PolynomialFeatures class from scikit-learn.
# Interaction between exogenous variables
# ==============================================================================
transformer_poly = PolynomialFeatures(
degree = 2,
interaction_only = True,
include_bias = False
).set_output(transform="pandas")
poly_cols = [
'month_sin',
'month_cos',
'week_sin',
'week_cos',
'day_of_week_sin',
'day_of_week_cos',
'hour_sin',
'hour_cos',
'sunrise_hour_sin',
'sunrise_hour_cos',
'sunset_hour_sin',
'sunset_hour_cos',
'daylight_hours',
'is_daylight',
'holiday_previous_day',
'holiday_next_day',
'Temperature_window_1D_mean',
'Temperature_window_1D_min',
'Temperature_window_1D_max',
'Temperature_window_7D_mean',
'Temperature_window_7D_min',
'Temperature_window_7D_max',
'Temperature',
'Holiday'
]
poly_features = transformer_poly.fit_transform(exogenous_features[poly_cols])
poly_features = poly_features.drop(columns=poly_cols)
poly_features.columns = [f"poly_{col}" for col in poly_features.columns]
poly_features.columns = poly_features.columns.str.replace(" ", "__")
assert all(poly_features.index == exogenous_features.index)
exogenous_features = pd.concat([exogenous_features, poly_features], axis=1)
exogenous_features.head(3)
# Select exogenous variables to be included in the model
# ==============================================================================
exog_features = []
# Columns that ends with _sin or _cos are selected
exog_features.extend(exogenous_features.filter(regex='_sin$|_cos$').columns.tolist())
# Columns that start with temp_ are selected
exog_features.extend(exogenous_features.filter(regex='^Temperature_.*').columns.tolist())
# Columns that start with holiday_ are selected
exog_features.extend(exogenous_features.filter(regex='^Holiday_.*').columns.tolist())
# Include original features
exog_features.extend(['Temperature', 'Holiday'])
# Merge target and exogenous variables in the same DataFrame
# ==============================================================================
data = data[['Demand']].merge(
exogenous_features[exog_features],
left_index=True,
right_index=True,
how='inner' # Use only dates for which we have all the variables
)
data = data.astype('float32')
# Split data into train-val-test
data_train = data.loc[: end_train, :].copy()
data_val = data.loc[end_train:end_validation, :].copy()
data_test = data.loc[end_validation:, :].copy()
The hyperparameters and lags identified as optimal in the previous section are again used to train the model, but this time, the exogenous variables are also included as predictors.
# Create forecaster
# ==============================================================================
forecaster = ForecasterRecursive(
regressor = LGBMRegressor(**best_params),
lags = best_lags,
window_features = window_features
)
# Backtesting model
# ==============================================================================
metric, predictions = backtesting_forecaster(
forecaster = forecaster,
y = data['Demand'],
exog = data[exog_features],
cv = cv,
metric = 'mean_absolute_error',
n_jobs = 'auto',
verbose = False,
show_progress = True
)
display(metric)
predictions.head()
The inclusion of exogenous variables as predictors further improves the predictive capacity of the model.
Feature selection¶
Feature selection is the process of selecting a subset of relevant features for use in model construction. It is an important step in the machine learning process, as it can help to reduce overfitting, improve model accuracy, and reduce training time. Since the underlying regressors of skforecast follow the scikit-learn API, it is possible to apply the feature selection methods available in scikit-learn with the function select_features(). Two of the most popular methods are Recursive Feature Elimination and Sequential Feature Selection.
💡 Tip
Feature selection is a powerful tool for improving the performance of machine learning models. However, it is computationally expensive and can be time-consuming. Since the goal is to find the best subset of features, not the best model, it is not necessary to use the entire data set or a highly complex model. Instead, it is recommended to use a small subset of the data and a simple model. Once the best subset of features has been identified, the model can then be trained using the entire dataset and a more complex configuration.# Create forecaster
# ==============================================================================
regressor = LGBMRegressor(
n_estimators = 100,
max_depth = 5,
random_state = 15926,
verbose = -1
)
forecaster = ForecasterRecursive(
regressor = regressor,
lags = 24,
window_features = window_features
)
# Recursive feature elimination with cross-validation
# ==============================================================================
selector = RFECV(
estimator = regressor,
step = 1,
cv = 3,
n_jobs = -1
)
lags_select, window_features_select, exog_select = select_features(
forecaster = forecaster,
selector = selector,
y = data_train['Demand'],
exog = data_train[exog_features],
select_only = None,
force_inclusion = None,
subsample = 0.5, # Subsample to speed up the process
random_state = 123,
verbose = True,
)
Scikit-learn's RFECV starts by training a model on the initial set of features, and obtaining the importance of each feature (through attributes such as coef_ or feature_importances_). Then, in each round, the least important features are iteratively removed, followed by cross-validation to calculate the performance of the model with the remaining features. This process continues until further feature removal doesn't improve or starts to degrade the performance of the model (based on a chosen metric), or the min_features_to_select is reached.
The final result is an optimal subset of features that ideally balances model simplicity and predictive power, as determined by the cross-validation process.
The forecaster is trained and re-evaluated using the best subset of features.
# Create a forecaster with the selected features
# ==============================================================================
forecaster = ForecasterRecursive(
regressor = LGBMRegressor(**best_params),
lags = lags_select,
window_features = window_features
)
# Backtesting model with exogenous variables on test data
# ==============================================================================
metric, predictions = backtesting_forecaster(
forecaster = forecaster,
y = data['Demand'],
exog = data[exog_select],
cv = cv,
metric = 'mean_absolute_error',
n_jobs = 'auto',
verbose = False,
show_progress = True
)
metric
The number of predictors has been reduced without compromising the performance of the model. This simplifies the model and speeds up training. It also reduces the risk of overfitting because the model is less likely to learn irrelevant feature noise.
Probabilistic forecasting: Prediction intervals¶
A prediction interval defines the interval within which the true value of the target variable can be expected to be found with a given probability. Rob J Hyndman and George Athanasopoulos, in their book Forecasting: Principles and Practice, list multiple ways to estimate prediction intervals, most of which require that the residuals (errors) of the model to be normally distributed. If this cannot be assumed, one can resort to bootstrapping, which requires only that the residuals be uncorrelated. This is one of the methods available in skforecast. A more detailed explanation of prediction intervals can be found in the Probabilistic forecasting: prediction intervals and prediction distribution user guide.
The following code shows how to generate prediction intervals for the autoregressive model. The prediction_interval() function is used to generate the prediction intervals for each predicted step. Then, the backtesting_forecaster() function is used to generate the prediction intervals for the entire test set. The interval argument is used to specify the desired coverage probability of the prediction intervals. In this case, interval is set to [5, 95], which means that the prediction intervals are calculated for the 5th and 95th percentiles, resulting in a theoretical coverage probability of 90%. The n_boot argument is used to specify the number of bootstrap samples to be used in estimating the prediction intervals. The larger the number of samples, the more accurate the prediction intervals will be, but the longer the calculation will take.
# Create and train forecaster
# ==============================================================================
forecaster = ForecasterRecursive(
regressor = LGBMRegressor(**best_params),
lags = lags_select,
window_features = window_features,
binner_kwargs = {"n_bins": 25}
)
forecaster.fit(
y = data.loc[:end_train, 'Demand'],
exog = data.loc[:end_train, exog_select]
)
# Predict intervals
# ==============================================================================
# Since the model has been trained with exogenous variables, they must be provided
# for the prediction.
predictions = forecaster.predict_interval(
exog = data.loc[end_train:, exog_select],
steps = 24,
interval = [5, 95],
)
predictions.head()
By default, intervals are calculated using in-sample residuals (residuals from the training set). However, this can result in intervals that are too narrow (overly optimistic). To avoid this, the set_out_sample_residuals() method is used to specify out-sample residuals computed with a validation set through backtesting.
If the predicted values are passed to set_out_sample_residuals() in addition to the residuals, then the residuals used in the bootstrapping process can be conditioned on the range of values of the predictions. This can help to improve the coverage of the estimated intervals while keeping them as narrow as possible.
# Backtesting on validation data to obtain out-sample residuals
# ==============================================================================
cv = TimeSeriesFold(
steps = 24,
initial_train_size = len(data.loc[:end_train]),
refit = False,
)
_, predictions_val = backtesting_forecaster(
forecaster = forecaster,
y = data.loc[:end_validation, 'Demand'], # Train + Validation
exog = data.loc[:end_validation, exog_select],
cv = cv,
metric = 'mean_absolute_error',
n_jobs = 'auto',
verbose = False,
show_progress = True
)
# Out-sample residuals distribution
# ==============================================================================
residuals = data.loc[predictions_val.index, 'Demand'] - predictions_val['pred']
print(pd.Series(np.where(residuals < 0, 'negative', 'positive')).value_counts())
plt.rcParams.update({'font.size': 8})
_ = plot_residuals(residuals=residuals, figsize=(7, 4))
# Store out-sample residuals in the forecaster
# ==============================================================================
forecaster.set_out_sample_residuals(
y_true = data.loc[predictions_val.index, 'Demand'],
y_pred = predictions_val['pred']
)
The backtesting process is then run to estimate the prediction intervals in the test set. The argument use_in_sample_residuals is set to False so that the previously stored out-sample residuals are used and use_binned_residuals so that the residuals used in bootstrapping are selected conditional on the range of prediction values.
# Backtesting with prediction intervals in test data using out-sample residuals
# ==============================================================================
cv = TimeSeriesFold(
steps = 24,
initial_train_size = len(data.loc[:end_validation]),
refit = False,
)
metric, predictions = backtesting_forecaster(
forecaster = forecaster,
y = data['Demand'], # Full dataset
exog = data[exog_select],
cv = cv,
metric = 'mean_absolute_error',
interval = [5, 95],
n_boot = 200,
use_in_sample_residuals = False, # Se utilizan los residuos out-sample
use_binned_residuals = True, # Residuos condicionados a los valores predichos
n_jobs = 'auto',
verbose = False,
show_progress = True
)
predictions.head(5)
# Plot prediction intervals vs real value
# ==============================================================================
fig = go.Figure([
go.Scatter(
name='Prediction', x=predictions.index, y=predictions['pred'], mode='lines',
),
go.Scatter(
name='Real value', x=data_test.index, y=data_test['Demand'], mode='lines',
),
go.Scatter(
name='Upper Bound', x=predictions.index, y=predictions['upper_bound'],
mode='lines', marker=dict(color="#444"), line=dict(width=0), showlegend=False
),
go.Scatter(
name='Lower Bound', x=predictions.index, y=predictions['lower_bound'],
marker=dict(color="#444"), line=dict(width=0), mode='lines',
fillcolor='rgba(68, 68, 68, 0.3)', fill='tonexty', showlegend=False
)
])
fig.update_layout(
title="Real value vs predicted in test data",
xaxis_title="Date time",
yaxis_title="Demand",
width=750,
height=370,
margin=dict(l=20, r=20, t=35, b=20),
hovermode="x",
legend=dict(
orientation="h",
yanchor="top",
y=1.1,
xanchor="left",
x=0.001
)
)
fig.show()
# Predicted interval coverage (on test data)
# ==============================================================================
inside_interval = np.where(
(data.loc[end_validation:, "Demand"] >= predictions["lower_bound"])
& (data.loc[end_validation:, "Demand"] <= predictions["upper_bound"]),
True,
False,
)
coverage = inside_interval.mean()
area = (predictions['upper_bound'] - predictions['lower_bound']).sum()
print(f"Total area of the interval: {round(area, 2)}")
print(f"Predicted interval coverage: {round(100 * coverage, 2)} %")
The observed coverage of the intervals is higher than the theoretically expected coverage (90%), the intervals are more conservative than necessary. This means that they contain the true value with a higher probability than expected.
✎ Note
For a more detailed explanation of the probabilistic forecasting features available in skforecast visit: Probabilistic forecasting with machine learningModel explanaibility and interpretability¶
Due to the complex nature of many modern machine learning models, such as ensemble methods, they often function as black boxes, making it difficult to understand why a particular prediction was made. Explanability techniques aim to demystify these models, providing insight into their inner workings and helping to build trust, improve transparency, and meet regulatory requirements in various domains. Enhancing model explainability not only helps to understand model behavior, but also helps to identify biases, improve model performance, and enable stakeholders to make more informed decisions based on machine learning insights.
Skforecast is compatible with some of the most popular model explainability methods: model-specific feature importances, SHAP values, and partial dependence plots.
# Create and train forecaster
# ==============================================================================
forecaster = ForecasterRecursive(
regressor = LGBMRegressor(**best_params),
lags = lags_select,
window_features = window_features
)
forecaster.fit(
y = data.loc[:end_validation, 'Demand'],
exog = data.loc[:end_validation, exog_select]
)
Model-specific feature importance¶
# Model-specific feature importances
# ==============================================================================
feature_importances = forecaster.get_feature_importances()
feature_importances.head(10)
⚠ Warning
Theget_feature_importances() method will only return values if the forecaster's regressor has either the coef_ or feature_importances_ attribute, which is the default in scikit-learn.
Shap values¶
SHAP (SHapley Additive exPlanations) values are a popular method for explaining machine learning models, as they help to understand how variables and values influence predictions visually and quantitatively.
It is possible to generate SHAP-values explanations from skforecast models with just two essential elements:
The internal regressor of the forecaster.
The training matrices created from the time series and exogenous features, used to fit the forecaster.
By leveraging these two components, users can create insightful and interpretable explanations for their skforecast models. These explanations can be used to verify the reliability of the model, identify the most significant factors that contribute to model predictions, and gain a deeper understanding of the underlying relationship between the input variables and the target variable.
# Training matrices used by the forecaster to fit the internal regressor
# ==============================================================================
X_train, y_train = forecaster.create_train_X_y(
y = data_train['Demand'],
exog = data_train[exog_select]
)
display(X_train.head(3))
display(y_train.head(3))
# Create SHAP explainer (for three base models)
# ==============================================================================
shap.initjs()
explainer = shap.TreeExplainer(forecaster.regressor)
# Sample 50% of the data to speed up the calculation
rng = np.random.default_rng(seed=785412)
sample = rng.choice(X_train.index, size=int(len(X_train)*0.5), replace=False)
X_train_sample = X_train.loc[sample, :]
shap_values = explainer.shap_values(X_train_sample)
✎ Note
Shap library has several explainers, each designed for a different type of model. Theshap.TreeExplainer explainer is used for tree-based models, such as the LGBMRegressor used in this example. For more information, see the SHAP documentation.
# Shap summary plot (top 10)
# ==============================================================================
shap.summary_plot(shap_values, X_train_sample, max_display=10, show=False)
fig, ax = plt.gcf(), plt.gca()
ax.set_title("SHAP Summary plot")
ax.tick_params(labelsize=8)
fig.set_size_inches(8, 4.5)
# Force plot for the first observation
# ==============================================================================
shap.force_plot(explainer.expected_value, shap_values[0,:], X_train_sample.iloc[0,:])
Direct multi-step forecasting¶
The ForecasterRecursive and ForecasterRecursiveCustom models follow a recursive strategy in which each new prediction is based on the previous one. Another strategy for multi-step forecasting involves training a separate model for each step to be predicted. This is known as direct multi-step forecasting and, although more computationally expensive than the recursive approach due to the need to train multiple models, it may yield better results.
# Forecaster with direct method
# ==============================================================================
forecaster = ForecasterDirect(
regressor = LGBMRegressor(**best_params),
steps = 24,
lags = lags_select,
window_features = window_features
)
# Backtesting model
# ==============================================================================
metric, predictions = backtesting_forecaster(
forecaster = forecaster,
y = data['Demand'],
exog = data[exog_select],
cv = cv,
metric = 'mean_absolute_error',
n_jobs = 'auto',
verbose = False,
show_progress = True
)
display(metric)
predictions.head()
The direct multi-step forecasting model outperforms the predictive capability of the recursive model, further reducing the mean absolute error. However, it is important to keep in mind its higher computational cost in assessing whether it is worth implementing.
Anticipated daily forecast¶
So far, we have evaluated the model under the assumption that the forecasts for the next day are generated at exactly 11:59 PM each day. However, this approach is impractical because there is no time to manage the early hours of the next day.
Now, suppose that the predictions for the next day need to be made at 11:00 AM each day to allow enough time. This means that at 11:00 on day $D$ you have to forecast the hours [12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23] of the same day and the hours [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23] of day $D+1$. This means that a total of 36 hours into the future have to be predicted, although only the last 24 hours have to be stored.
This type of evaluation can be easily done using the backtesting_forecaster() function and its gap argument. In addition, the allow_incomplete_fold argument allows the last fold to be excluded from the analysis if it does not have the same size as the required number of steps. The process adapted to this scenario is run on a daily basis and consists of the following steps:
At 11:00 a.m. on the first day of the test set, the next 36 hours (the remaining 12 hours of the day plus 24 hours of the following day) are predicted.
Only the forecasts for the next day are stored, i.e. starting from position 12.
The next day until 11:00 a.m. is added to the test set.
The process is repeated.
Thus, at 11:00 a.m. each day, the model has access to the actual demand values recorded up to that time.
⚠ Warning
There are two considerations to take into account:- Training data must end where the gap begins. In this case, the
initial_train_sizemust be extended by 12 positions so that the first point to be predicted is 2014-12-01 12:00:00. - In this example, although only the last 24 predictions (steps) are stored for model evaluation, the total number of predicted steps in each fold is 36 (steps + gap).
# End of initial_train_size + 12 positions
# ==============================================================================
data.iloc[:len(data.loc[:end_validation]) + 12].tail(2)
# Forecaster
# ==============================================================================
forecaster = ForecasterRecursive(
regressor = LGBMRegressor(**best_params),
lags = lags_select,
window_features = window_features
)
# Backtesting with gap
# ==============================================================================
cv = TimeSeriesFold(
steps = 24,
initial_train_size = len(data.loc[:end_validation]) + 12,
refit = False,
gap = 12,
)
metric, predictions = backtesting_forecaster(
forecaster = forecaster,
y = data['Demand'],
exog = data[exog_select],
cv = cv,
metric = 'mean_absolute_error',
n_jobs = 'auto',
verbose = False,
show_progress = True
)
display(metric)
predictions.head(5)
As expected, the error increases as the forecast horizon increases from 24 to 36 hours.
Conclusions¶
The use of gradient boosting models has proven to be a powerful tool for forecasting energy demand. One of the main advantages of these models is that they can easily incorporate exogenous variables, which can significantly improve the predictive power of the model. In addition, the use of explicability techniques can help to visually and quantitatively understand how variables and values affect predictions. All of these issues are easily addressed using the skforecast library.
| Forecaster | Exogenous Variables | MAE backtest |
|---|---|---|
ForecasterEquivalentDate (Baseline) |
False | 308.3 |
ForecasterRecursive |
False | 206.3 |
ForecasterRecursive |
True | 135.2 |
ForecasterRecursive |
True (Feature Selection) | 133.3 |
ForecasterDirect |
True (Feature Selection) | 119.8 |
Session information¶
import session_info
session_info.show(html=False)
Bibliography¶
Hyndman, R.J., & Athanasopoulos, G. (2021) Forecasting: principles and practice, 3rd edition, OTexts: Melbourne, Australia.
Time Series Analysis and Forecasting with ADAM Ivan Svetunkov
Joseph, M. (2022). Modern time series forecasting with Python: Explore industry-ready time series forecasting using modern machine learning and Deep Learning. Packt Publishing.
Citation¶
How to cite this document
If you use this document or any part of it, please acknowledge the source, thank you!
Forecasting energy demand with machine learning by Joaquín Amat Rodrigo and Javier Escobar Ortiz, available under Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0 DEED) at https://www.cienciadedatos.net/documentos/py29-forecasting-electricity-power-demand-python.html
How to cite skforecast
If you use skforecast for a scientific publication, we would appreciate it if you cite the published software.
Zenodo:
Amat Rodrigo, Joaquin, & Escobar Ortiz, Javier. (2023). skforecast (v0.14.0). Zenodo. https://doi.org/10.5281/zenodo.8382788
APA:
Amat Rodrigo, J., & Escobar Ortiz, J. (2023). skforecast (Version 0.14.0) [Computer software]. https://doi.org/10.5281/zenodo.8382788
BibTeX:
@software{skforecast, author = {Amat Rodrigo, Joaquin and Escobar Ortiz, Javier}, title = {skforecast}, version = {0.14.0}, month = {11}, year = {2024}, license = {BSD-3-Clause}, url = {https://skforecast.org/}, doi = {10.5281/zenodo.8382788} }
Did you like the article? Your support is important
Website maintenance has high cost, your contribution will help me to continue generating free educational content. Many thanks! 😊
This work by Joaquín Amat Rodrigo and Javier Escobar Ortiz is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International.
Allowed:
-
Share: copy and redistribute the material in any medium or format.
-
Adapt: remix, transform, and build upon the material.
Under the following terms:
-
Attribution: You must give appropriate credit, provide a link to the license, and indicate if changes were made. You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
-
NonCommercial: You may not use the material for commercial purposes.
-
ShareAlike: If you remix, transform, or build upon the material, you must distribute your contributions under the same license as the original.
